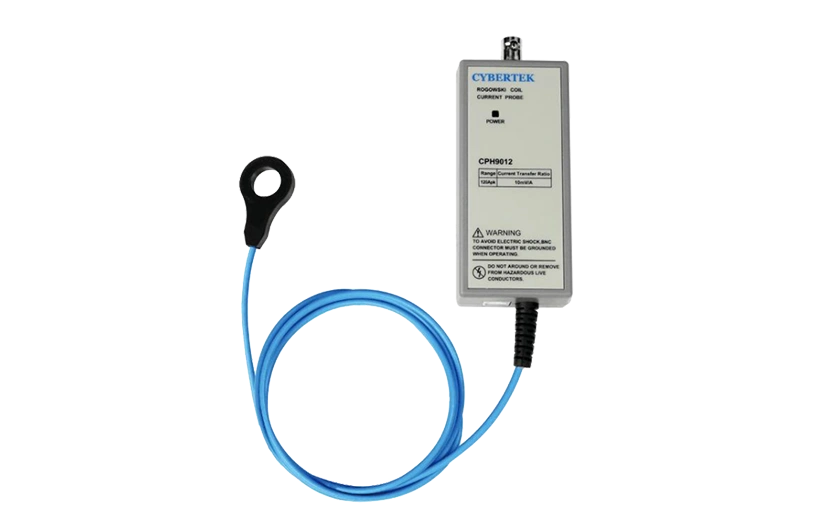

The CPH9000 Series Rogowski Coil High-Frequency Current Probe is a high-frequency current probe that only tests AC current signals, featuring high bandwidth and high precision (typically 2%). With a bandwidth of up to 100MHz and a standard BNC output interface, it facilitates connection with oscilloscopes, data loggers, and other devices for observing current waveforms; it adopts a USB power supply interface design, offering greater flexibility and convenience in use; the length of the probe loop and connecting cable can be customized according to customer requirements to meet the testing needs of special occasions.
PDF 456KB
Bandwidth up to 100MHz.
Typical precision up to 2%.
Standard BNC output.
Flexible power supply via USB interface.
Customizable cable length.
Specialized for AC current signal testing.
Measurement Conditions: 23℃; 60%RH; The measured wire passes through the center of the probe's induction loop.
| Model | CPH9012 | CPH9030 | CPH9060 |
|---|---|---|---|
| Current Range | 120Apk | 300Apk | 600Apk |
| Range Sensitivity | 10mV/A | 5mV/A | 2mV/A |
| Typical Accuracy | ±2% | ||
| High-Frequency Bandwidth | 100MHz | ||
| Low-Frequency Cutoff (Hz) | 65 | 32 | 15 |
| di/dt（kA/μs） | 30 | 85 | 150 |
| Output Noise | 1.8mVrms | ||
| Output Impedance | 50Ω | ||
| Output Interface | BNC | ||
| Maximum Output Voltage | ±1.2Vpk | ±1.5Vpk | ±1.2Vpk |
| Power Supply Method | USB 5V/2A (Standard Adapter Included) | ||
Version: 2025
