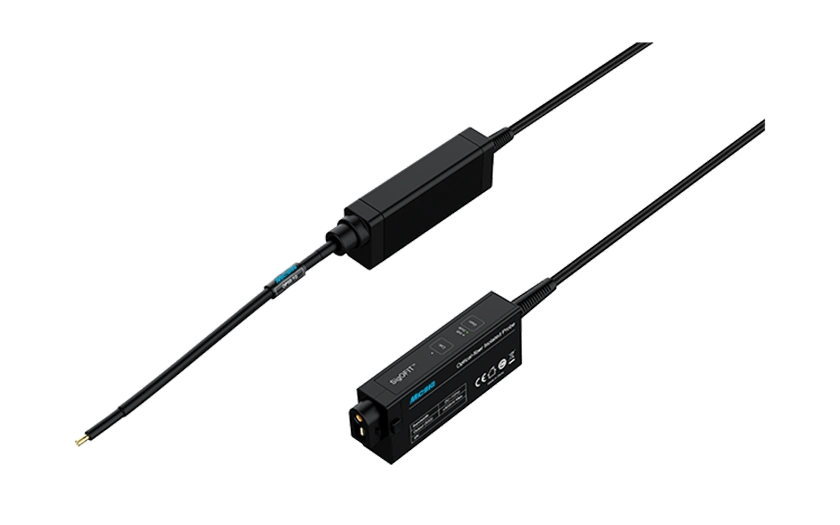

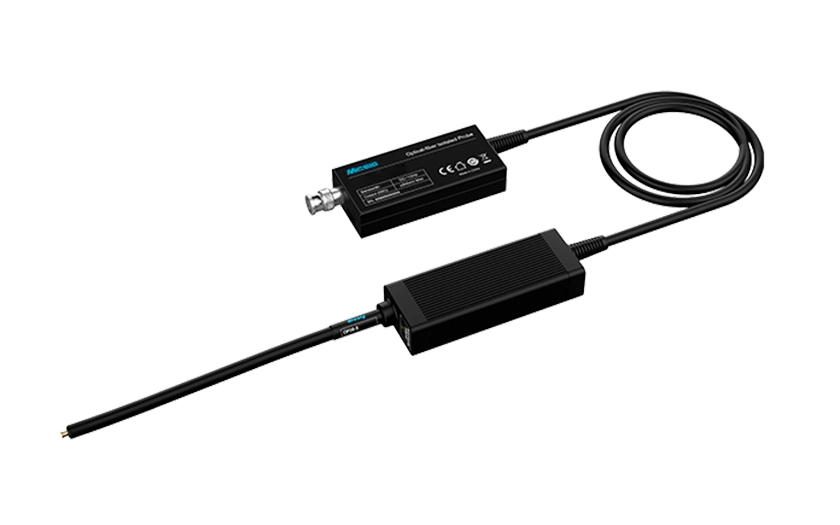

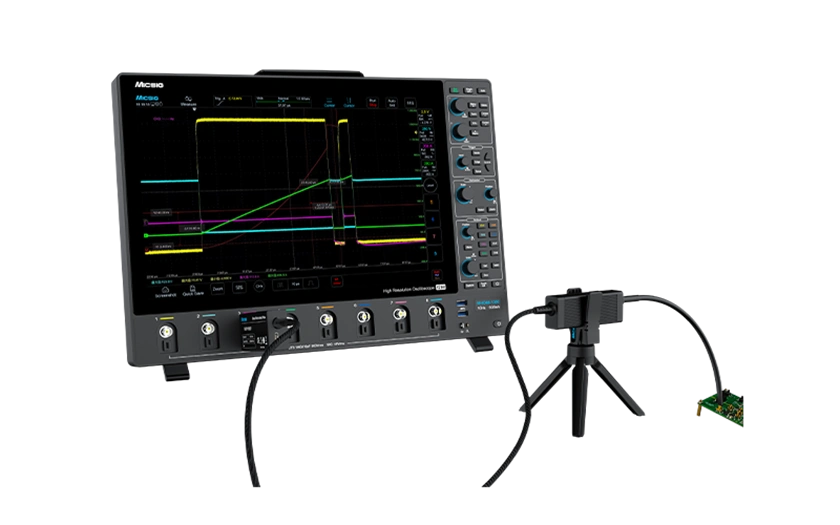

Optically isolated probes based on exclusive SigOFIT™ technology feature extremely high common mode rejection ratio and isolation voltage. They reveal the complete truth of signals within their bandwidth range, serving as the ultimate judge for verifying the authenticity of signals measured by other voltage probes.
PDF 593KB
Laser-powered signal transmission, no battery required for purer performance
CMRR remains as high as 108dB at 1GHz
1GHz bandwidth, voltage from ±0.01V to 6250V
Input capacitance as low as 1pF, accuracy better than 1%
Instant self-calibration, high stability and low temperature drift
Standard BNC interface, customizable attenuators and optical fibers
| Model | MOIP100P | MOIP200P | MOIP350P | MOIP500P | MOIP800P | MOIP1000P |
|---|---|---|---|---|---|---|
| Bandwidth | 100MHz | 200MHz | 350MHz | 500MHz | 800MHz | 1GHz |
| Rise Time | ≤3.5ns | ≤1.75ns | ≤1ns | ≤700ps | ≤500ps | ≤450ps |
| Common Mode Rejection Ratio (CMRR) | DC: 180dB 100MHz: 128dB | DC: 180dB 200MHz: 122dB | DC: 180dB 350MHz: 118dB | DC: 180dB 500MHz: 114dB | DC: 180dB 800MHz: 110dB | DC: 180dB 1GHz: 108dB |
| Test Voltage Range | Standard OP20 (MMCX), ±25V - Optional OP50 (MMCX), ±62.5V - Optional OP200 (MCX), ±250V - Optional OP1000 (MCX), ±1250V - Optional OP2000 (MCX), ±2500V - Optional OP5000 (LCX), ±6250V | Standard OP20 (MMCX), ±25V Optional OP50 (MMCX), ±62.5V Optional OP200 (MCX), ±250V Standard OP1000 (MCX), ±1250V Optional OP2000 (MCX), ±2500V Optional OP5000 (LCX), ±6250V | Optional OP20 (MMCX), ±10V Standard OP50 (MMCX), ±25V Optional OP100 (MMCX), ±50V Standard OP2000 (MCX), ±1000V Optional OP5000 (MCX), ±2500V Optional OP10000 (LCX), ±5000V | |||
| Noise Floor | <0.45mVrms | |||||
| DC Gain Accuracy | 1% | |||||
| Common Mode Voltage | 85KVpk | |||||
| Oscilloscope End Interface | Universal standard BNC interface, compatible with oscilloscopes of all brands | |||||
